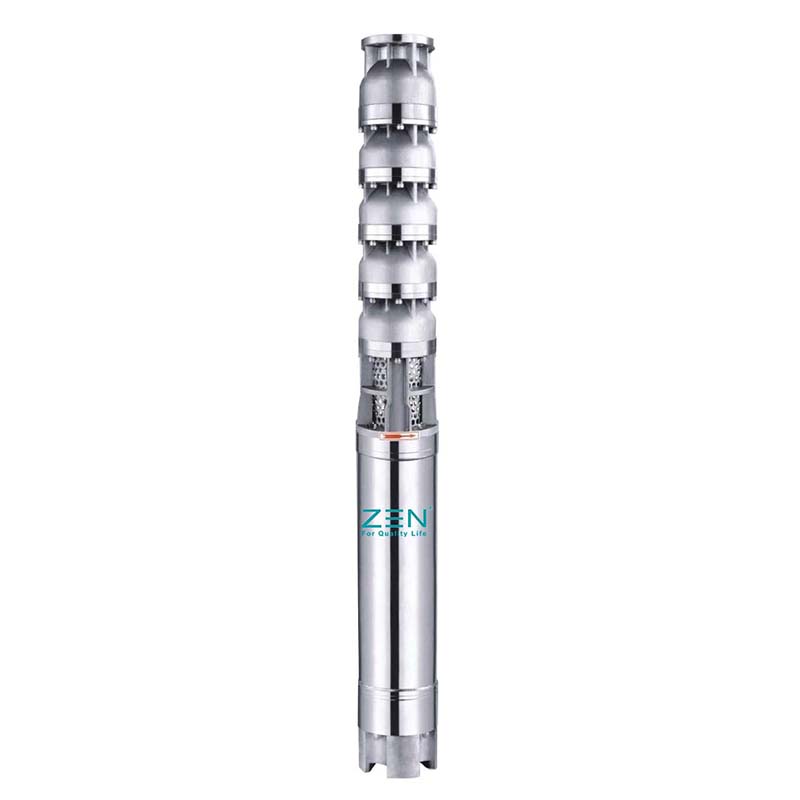

Pompa Sumur Dalam Berisi Air Stainless Steel 10QJS terbuat dari baja silikon kelas 50TW 400-600, yang memiliki kenaikan suhu kecil, efek hemat energi yang baik, dan masa pakai yang lama.
1. Cocok untuk sumur dalam dengan diameter lebih dari 250 mm.
2. Seluruh pompa dan motor: pengecoran presisi baja tahan karat
Karakteristik: ketahanan korosi, kinerja stabil, umur panjang.
3. Cocok untuk memulai dan menjalankan konverter frekuensi tanpa merusak belitan motor.
4. Kustomisasi didukung: air dingin atau panas dapat dipilih
5. Dukungan penyesuaian: Bahan opsional: baja tahan karat 304 - 316 - 316L - 2205 dan bahan lainnya.
Aliran bisa mencapai: 230 m³/jam
Ketinggian air: 270 meter
* Desain tegangan lebar, operasi 300V - 420V yang aman dan stabil.
* Motor listrik: pelat baja silikon 50TW 400 - 600, kenaikan suhu kecil, efek hemat energi yang baik, masa pakai yang lama.
* Koneksi elektromagnetik motor: 180C. Kelas isolasi: level H
* Saluran listrik: F46 Bahan tahan air suhu tinggi.
* Gasket bantalan utama: merek Morgan (dari Inggris), bahan: paduan grafit dengan kemurnian tinggi, terus bekerja selama 80.000 jam tanpa kegagalan.
*Desain elektromagnetik: Beban gandar diatur ke 1,35 kali daya gandar.
*Sumbu utama motor: 40Cr/42Cr - Mo untuk menghindari kerusakan mesin.
* Kelas akurasi pemrosesan: tingkat akurasi pertama B.
| Model | Roda |
Maksimum kursus m³/jam |
Maksimum upaya (M) |
Kekuatan mesin |
Pompa maksimal OD |
Ukuran ekspor | ||
| KW | HP | mm | Inci | mm | ||||
| 10QJS80T-30/1 | 1 | 80 | 30 | 11 | 15 | 233 | 4" | 100 |
| 10QJS80T-60/2 | 2 | 80 | 60 | 22 | 30.0 | 4" | 100 | |
| 10QJS80T-90/3 | 3 | 80 | 90 | 30 | 40.0 | 4" | 100 | |
| 10QJS80T-120/4 | 4 | 80 | 120 | 45 | 60.0 | 4" | 100 | |
| 10QJS80T-150/5 | 5 | 80 | 150 | 55 | 75.0 | 4" | 100 | |
| 10QJS80T-180/6 | 6 | 80 | 180 | 63 | 84.0 | 4" | 100 | |
| 10QJS80T-210/7 | 7 | 80 | 210 | 75 | 100.0 | 4" | 100 | |
| 10QJS80T-240/8 | 8 | 80 | 240 | 90 | 120.0 | 4" | 100 | |
| 10QJS80T-270/9 | 9 | 80 | 270 | 110 | 150.0 | 4" | 100 | |
| 10QJS80T-300/10 | 10 | 80 | 300 | 110 | 150.0 | 4" | 100 | |
| 10QJS100T-30/1 | 1 | 100 | 30 | 15 | 20.0 | 5" | 125 | |
| 10QJS100T-60/2 | 2 | 100 | 60 | 25 | 33.5 | 5" | 125 | |
| 10QJS100T-90/3 | 3 | 100 | 90 | 45 | 60.0 | 5" | 125 | |
| 10QJS100T-120/4 | 4 | 100 | 120 | 55 | 75.0 | 5" | 125 | |
| 10QJS100T-150/5 | 5 | 100 | 150 | 75 | 100.0 | 5" | 125 | |
| 10QJS100T-180/6 | 6 | 100 | 180 | 90 | 120.0 | 5" | 125 | |
| 10QJS100T-210/7 | 7 | 100 | 210 | 110 | 150.0 | 5" | 125 | |
| 10QJS100T-240/8 | 8 | 100 | 240 | 110 | 150.0 | 5" | 125 | |
| 10QJS100T-270/9 | 9 | 100 | 270 | 125 | 167.0 | 5" | 125 | |
| 10QJS125T-30/1 | 1 | 125 | 30 | 18.5 | 25.0 | 5" | 125 | |
| 10QJS125T-60/2 | 2 | 125 | 60 | 37 | 50.0 | 5" | 125 | |
| 10QJS125T-90/3 | 3 | 125 | 90 | 55 | 75.0 | 5" | 125 | |
| 10QJS125T-120/4 | 4 | 125 | 120 | 75 | 100.0 | 5" | 125 | |
| 10QJS125T-150/5 | 5 | 125 | 150 | 90 | 120.0 | 5" | 125 | |
| 10QJS125T-180/6 | 6 | 125 | 180 | 110 | 150.0 | 5" | 125 | |
| 10QJS125T-210/7 | 7 | 125 | 210 | 125 | 167.0 | 5" | 125 | |
| 10QJS140T-30/1 | 1 | 140 | 30 | 22 | 30.0 | 5" | 125 | |
| 10QJS140T-90/3 | 3 | 1 40 | 90 | 63 | 84.0 | 5" | 125 | |
| 10QJS140T-120/4 | 4 | 140 | 120 | 90 | 120.0 | 5" | 125 | |
| Model | Roda |
Maksimum kursus m³/jam |
Maksimum upaya (M) |
Kekuatan mesin |
Pompa maksimal OD |
Ukuran ekspor | ||
| KW | HP | mm | Inci | mm | ||||
| 10QJS140T-150/5 | 5 | 140 | 150 | 110 | 150 | 233 | 5" | 125 |
| 10QJS140T-180/6 | 6 | 140 | 180 | 125 | 167.0 | 5" | 125 | |
| 10QJS160T-25/1 | 1 | 160 | 25 | 18.5 | 25.0 | 6" | 150 | |
| 10QJS160T-50/2 | 2 | 160 | 50 | 37 | 50.0 | 6" | 150 | |
| 10QJS160T-75/3 | 3 | 160 | 75 | 55 | 75.0 | 6" | 150 | |
| 10QJS160T-100/4 | 4 | 160 | 100 | 75 | 100.0 | 6" | 150 | |
| 10QJS160T-125/5 | 5 | 160 | 125 | 90 | 120.0 | 6" | 150 | |
| 10QJS160T-150/6 | 6 | 160 | 150 | 110 | 150.0 | 6" | 150 | |
| 10QJS160T-175/7 | 7 | 160 | 175 | 140 | 187.0 | 6" | 150 | |
| 10QJS160T-200/8 | 8 | 160 | 200 | 160 | 213.5 | 6" | 150 | |
| 10QJS160T-225/9 | 9 | 160 | 225 | 180 | 240.0 | 6" | 150 | |
| 10QJS180T-25/1 | 1 | 180 | 25 | 22 | 30.0 | 6" | 150 | |
| 10QJS180T-50/2 | 2 | 180 | 50 | 45 | 60.0 | 6" | 150 | |
| 10QJS180T-75/3 | 3 | 180 | 75 | 75 | 100.0 | 6" | 150 | |
| 10QJS180T-100/4 | 4 | 180 | 100 | 90 | 120.0 | 6" | 150 | |
| 10QJS180T-125/5 | 5 | 180 | 125 | 110 | 150.0 | 6" | 150 | |
| 10QJS180T-150/6 | 6 | 180 | 150 | 125 | 167.0 | 6" | 150 | |
| 10QJS200T-25/1 | 1 | 200 | 25 | 25 | 33.5 | 6" | 150 | |
| 10QJS200T-50/2 | 2 | 200 | 50 | 55 | 75.0 | 6" | 150 | |
| 10QJS200T-75/3 | 3 | 200 | 75 | 75 | 100.0 | 6" | 150 | |
| 10QJS200T-100/4 | 4 | 200 | 100 | 110 | 150.0 | 6" | 150 | |
| 10QJS200T-125/5 | 5 | 200 | 125 | 125 | 167.0 | 6" | 150 | |
| 10QJS230T-40/2 | 2 | 230 | 40 | 45 | 60.0 | 6" | 150 | |
| 10QJS230T-60/3 | 3 | 230 | 60 | 63 | 84.0 | 6" | 150 | |
| 10QJS230T-80/4 | 4 | 230 | 80 | 90 | 120.0 | 6" | 150 | |
| 10QJS230T-100/5 | 5 | 230 | 100 | 110 | 150.0 | 6" | 150 | |
| 10QJS230T-120/6 | 6 | 230 | 120 | 125 | 167.0 | 6" | 150 | |
| 10QJS230T-160/8 | 8 | 230 | 160 | 160 | 213.5 | 6" | 150 | |
