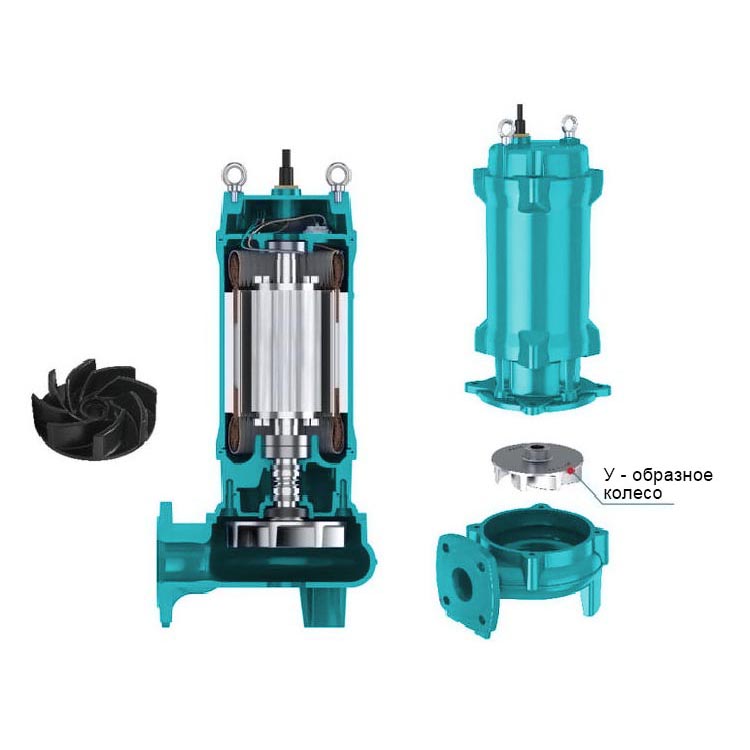

Pompa Limbah Aliran Tinggi WQUrangkaian produk80WQU27.5Ukuran keluaranJenis pompaMotor dua kutubKekuatanUkuran Saluran Keluar (mm)Tipe PompaMotor dua kutubDaya (kW）karakteristik jangkauanKekuatan/Kekuatan1,5-7,5kWPolandia2Kaliber/DebitDN65-80Maks. Aliran/Laju aliran maks80m³/jamTekanan maks/kep......
| 80 | WQU | 2 | 7.5 |
| Ukuran keluaran |
Jenis pompa |
Motor dua kutub |
Kekuatan |
| Ukuran Saluran Keluar (mm) | Tipe Pompa | Motor dua kutub | Daya (kW） |
| Kekuatan/Kekuatan | 1,5-7,5kW |
| Polandia | 2 |
| Kaliber/Debit | DN65-80 |
| Maks. Aliran/Laju aliran maks | 80m³/jam |
| Tekanan maks/kepala maks | 33 m |
| Jalur tanah | 45mm |
| Jenis Jenis |
Kaliber A (mm) |
L (mm) |
L1 (mm) |
B (mm) |
H (mm) |
H1 (mm) |
D0 (mm) |
n-d0 (mm) |
| 50WQU2-1.5 | 50 | 250 | 147 | 186 | 506 | 91 | 110 | 13 |
| 50WQU2-2.2 | 50 | 250 | 147 | 186 | 506 | 91 | 110 | 13 |
| 80(65)WQU2-1.5 | 65 | 250 | 147 | 186 | 506 | 91 | 150 | 18 |
| 80(65)WQU2-2.2 | 65 | 250 | 147 | 186 | 506 | 91 | 150 | 18 |
| 80(65)WQU2-3.7 | 65 | 268 | 161 | 215 | 586 | 91 | 150 | 18 |
| 80(65)WQU2-5.5 | 65 | 320 | 192 | 256 | 627 | 104 | 150 | 18 |
| 80(65)WQU2-7.5 | 65 | 320 | 192 | 256 | 627 | 104 | 150 | 18 |
| 100WQU4-5.5 | 100 | 398 | 231 | 345 | 854 | 104 | 170 | 18 |
| 100WQU4-7.5 | 100 | 398 | 231 | 345 | 854 | 104 | 170 | 18 |
| 150WQU4-7.5 | 150 | 403 | 236 | 345 | 890 | 140 | 225 | 18 |
| JENIS JENIS |
Tegangan Tegangan (V) |
Kekuatan | Toko | Lewati ukuran partikel Lewati ukuran partikel (mm) |
Peringkat. Mengalir Peringkat Q (m³/jam) |
Kepala nominal H. dinilai (M) |
Maks. Sungai kecil Q.maks (m³/jam) |
Max.Kepala H.maks (M) |
Berat G.W (kg) |
Ukuran paket Ukuran paket (cm) |
||
| (KW) | (HP) | (inci) | (mm) | |||||||||
| 50WQU2-1.5 | 3Ph/380V | 1.5 | 2 | 2" | 50 | 50 | 24 | 8.5 | 39 | 14.3 | 36.3 | 58*26*20 |
| 50WQU2-2.2 | 3Ph/380V | 2.2 | 3 | 2" | 50 | 50 | 20 | 12 | 43 | 16.4 | 37.7 | 58*26*20 |
| 80(65WQU2-1.5 | 3Ph/380V | 1.5 | 2 | 3"(2,5") | 80(65) | 50 | 24 | 8.5 | 39 | 14.3 | 38.34 | 58*26*20 |
| 80(65)WQU2-2.2 | 3Ph/380V | 2.2 | 3 | 3"(2,5") | 80(65) | 50 | 20 | 12 | 43 | 16.4 | 39.72 | 58*26*20 |
| 80(65)WQU2-3.7 | 3Ph/380V | 3.7 | 5 | 3"(2,5") | 80(65) | 50 | 40 | 14 | 64 | 23.5 | 57.34 | 68*29*33 |
| 80(65)WQU2-5.5 | 3Ph/380V | 5.5 | 7.5 | 3"(2,5") | 80(65) | 50 | 36 | 20 | 74 | 28 | 82.1 | 70*33*26 |
| 80(65)WQU2-7.5 | 3Ph/380V | 7.5 | 10 | 3"(2,5") | 80(65) | 50 | 36 | 24 | 80 | 33 | 84.2 | 70*33*26 |
| 100WQU4-5.5 | 3Ph/380V | 5.5 | 7.5 | 4" | 100 | 80 | 60 | 11 | 153 | 14.4 | 164 | 48*43*98 |
| 100WQU4-7.5 | 3Ph/380V | 7.5 | 10 | 4" | 100 | 80 | 60 | 13 | 160 | 16.5 | 170 | |
| 150WQU4-5.5 | 3Ph/380V | 5.5 | 7.5 | 6" | 150 | 80 | 70 | 10 | 158 | 14 | 171 | |
| 150WQU4-7.5 | 3Ph/380V | 7.5 | 10 | 6" | 150 | 80 | 70 | 12 | 165 | 16.1 | 176 | |
