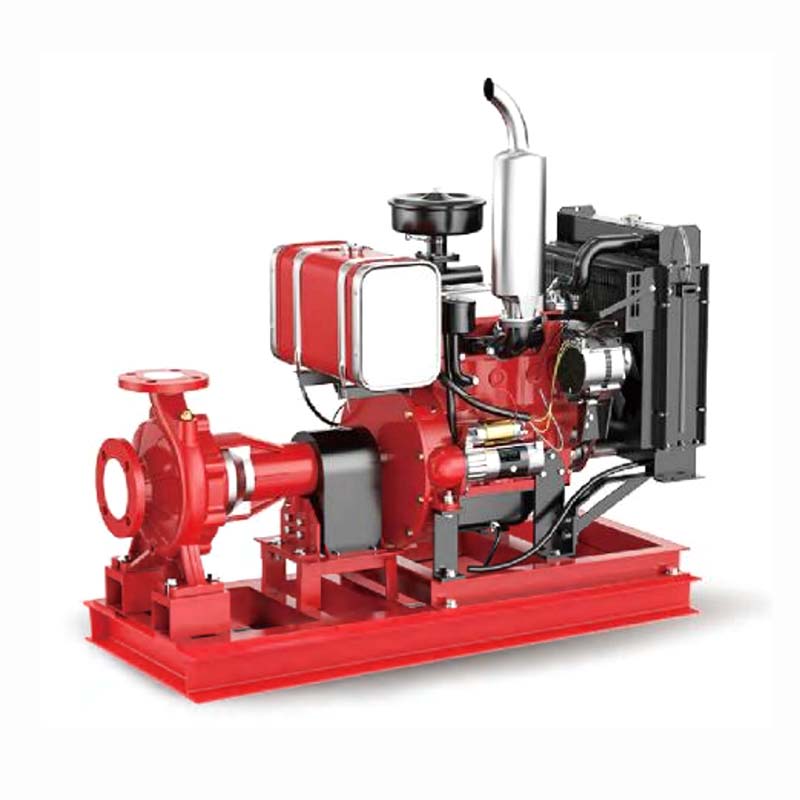

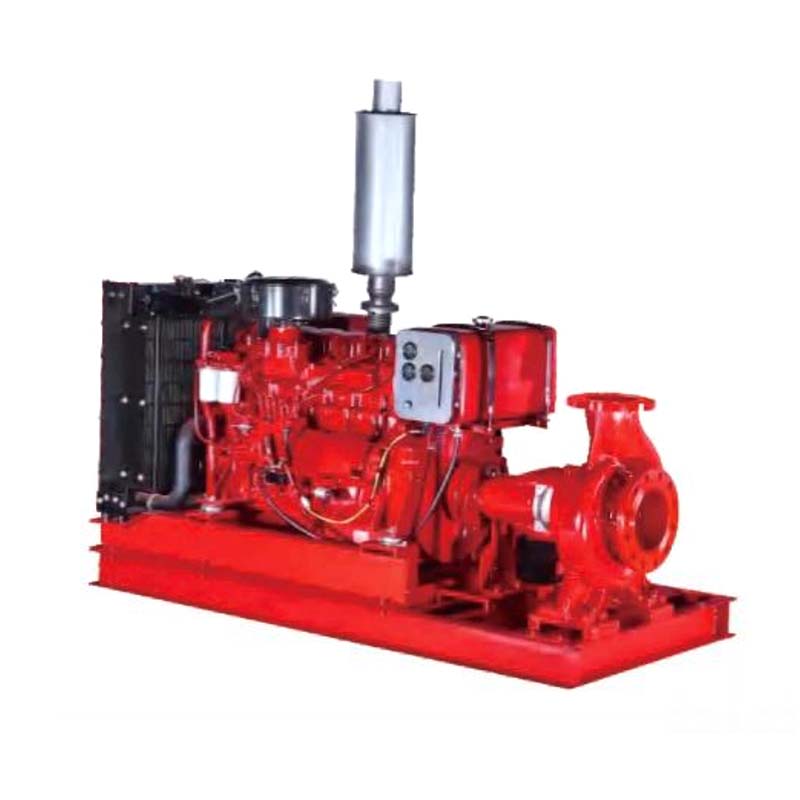

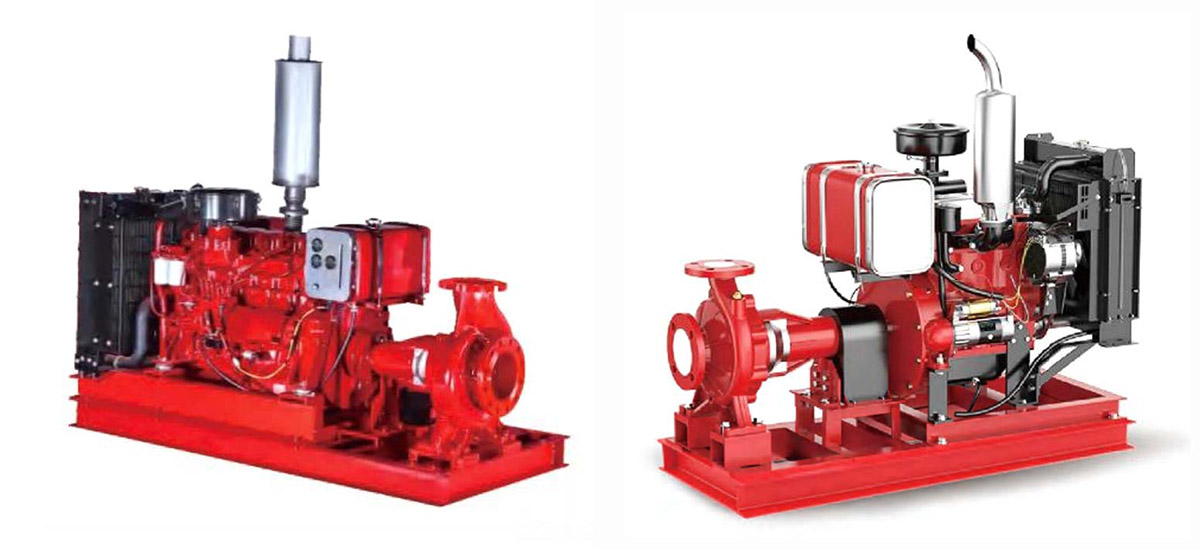

Untuk memenuhi persyaratan khusus penggerak pompa kebakaran, kami merekomendasikan mesin diesel ZEN SD berkualitas tinggi untuk pompa tersebut. Menampilkan desain pengapian kompresi dan sistem injeksi dan pembakaran langsung yang canggih, ia menawarkan kinerja unggul dan efisiensi tinggi sekaligus memenuhi sepenuhnya persyaratan catu daya pompa kebakaran NFPA 20 yang ketat. Saat ini satu-satunya jenis mesin pembakaran internal yang diizinkan oleh standar ini.
Sebagai produsen profesional, ZEN berkomitmen menyediakan mesin diesel SD berkualitas tinggi untuk pompa. Setiap mesin yang kami buat dilengkapi dengan dua baterai, memenuhi spesifikasi secara ketat, dan dilengkapi berbagai desain untuk memastikan keandalan, penyalaan instan, dan pengoperasian berkelanjutan dalam situasi darurat. Dengan mempercayai ZEN, Anda memilih keamanan yang memenuhi standar internasional. Kami menawarkan sistem layanan purna jual yang komprehensif dan berkomitmen untuk menyediakan Anda produk berkualitas tinggi dan pengalaman berbelanja yang menyenangkan.
◆ Mesin diesel telah terbukti sangat andal dan efisien untuk menggerakkan pompa kebakaran.
◆ Saat ini, mesin diesel adalah satu-satunya jenis mesin pembakaran internal yang diizinkan oleh NFPA 20.
◆ Setiap mesin harus dilengkapi dengan dua baterai sesuai dengan NFPA 20.
◆ Mesin diesel untuk pompa kebakaran adalah pengapian kompresi.
◆ Sistem injeksi dan pembakaran langsung yang canggih.
| MODEL | SD |
| Pertunjukan |
0-1000 m³/jam |
| Upaya | 0-164 m |
| hari | 32-150mm |
| Kecepatan | 3000 rpm |
| Tmaks. | 120℃ |
| Kekuatan | 6,3-300kW |
| Bingkai | Besi cor kelabu |
| pendorong | AISI 304/Kuningan |
| Batang | AISI 304 |
| Segel poros | Segel mekanis |
| pembawa | Pelumasan bantalan |
| MODEL | hari | Impl dia. |
Kekuatan | Q = PENGIRIMAN | |||||||||||||||
| kami gpm O | 25 | 50 | 75 | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |||||
| AISI 304 | 95 | 190 | 283 | 383 | 450 | 567 | 750 | 950 | 1133 | 1317 | 1517 | 1700 | 1900 | 2267 | |||||
| m³/jam HAI | 5.7 | 11.4 | 17 | 23 | 27 | 34 | 45 | 57 | 68 | 79 | 91 | 102 | 114 | 136 | |||||
| mm | mm | kw | hp | H=Kepala(m) | |||||||||||||||
| SD 32-250/55 | 50x32 | 208 | 6.3 | 8.6 | 60 | 60 | 58 | 52 | 39 | - | - | - | - | - | - | - | - | - | - |
| SD 32-250/75 | 50x32 | 230 | 7.2 | 10 | 69.5 | 69.5 | 68 | 64 | 56 | - | - | - | - | - | - | - | - | - | - |
| SD 32-250/92 | 50x32 | 237 | 8.2 | 12 | 75 | 75 | 73.5 | 70 | 61 | - | - | - | - | - | - | - | - | - | - |
| SD 125-250/900 | 50x32 | 250 | 8.2 | 12 | 90 | 89 | 86 | 80 | 69 | - | - | - | - | - | - | - | - | - | - |
| SD 32-250/150 | 50x32 | 258 | 20 | 27 | 97 | 96.8 | 94 | 88 | 76 | - | - | - | - | - | - | - | - | - | - |
| SD 40-250/110 | 65x40 | 230 | 8.2 | 12 | 72 | - | - | 68 | 66 | 63.5 | 59 | 50 | - | - | - | - | - | - | - |
| SD 40-250/150 | 65x40 | 250 | 20 | 27 | 84.5 | - | - | 79.5 | 77.5 | 75.2 | 71.5 | 63 | - | - | - | - | - | - | - |
| SD 40-250/185 | 65x40 | 258 | 20 | 27 | 90 | - | - | 86 | 83.5 | 80.7 | 77 | 68 | - | - | - | - | - | - | - |
| SD 50-250/150 | 65x50 | 228 | 20 | 27 | 68.5 | - | - | - | - | - | 65 | 62 | 58 | 53 | 45 | - | - | - | - |
| SD 50-250/185 | 65x50 | 235 | 20 | 27 | 79 | - | - | - | - | - | 77 | 74 | 71 | 66 | 59 | 47 | - | - | - |
| SD 50-250/220 | 65x50 | 250 | 24 | 32 | 89.5 | - | - | - | - | - | 88 | 85 | 81.5 | 76 | 68 | 57 | - | - | - |
| SD50-250/300 | 65x50 | 258 | 28 | 38 | 95.5 | - | - | - | - | 92 | 90 | 87 | 81 | 74 | 63 | - | - | - | |
| SD 65-250/220 | 80x65 | 225 | 24 | 32 | 64.8 | - | - | - | - | - | - | 63.5 | 62 | 61 | 58.5 | 56 | 52.5 | - | |
| SD65-250/300 | 80x65 | 244 | 28 | 38 | 80 | - | - | - | - | - | - | - | 79 | 78 | 77 | 74.5 | 72 | 70 | 59 |
| SD 65-250/370 | 80x65 | 258 | 42 | 58 | 92 | - | - | - | - | - | - | - | 89.5 | 88.5 | 87 | 85 | 83 | 80 | 69 |
| MODEL | hari | Impl dia. |
Kekuatan | Q = PENGIRIMAN | ||||||||||||||||||
| kami gpm O | 250 | 400 | 500 | 600 | 750 | 850 | 950 | 1000 | 1250 | 1350 | 1500 | 1750 | 2000 | 2500 | 3000 | 3500 | 4500 | |||||
| AISI 304 | 950 | 1517 | 1900 | 2267 | 2833 | 3217 | 3600 | 3783 | 4733 | 5100 | 5683 | 6617 | 7567 | 9467 | 11350 | 13250 | 17033 | |||||
| m³/jam HAI | 57 | 91 | 114 | 136 | 170 | 193 | 216 | 227 | 284 | 306 | 341 | 397 | 454 | 568 | 681 | 795 | 1022 | |||||
| mm | mm | kw | hp | H=Kepala(m) | ||||||||||||||||||
| SD 65-315/450 | 80x65 | 262 | 45 | 61 | 102 | 98 | 94.5 | 90 | 83 | - | - | - | - | - | - | - | - | - | - | - | - | - |
| SD 65-315/550 | 80x65 | 290 | 55 | 75 | 122 | 120 | 114.5 | 111 | 104 | 85 | - | - | - | - | - | - | - | - | - | - | - | - |
| SD 65-315/750 | 80x65 | 317 | 75 | 100 | 141 | 141 | 134.5 | 132 | 123 | 105 | 86 | 64 | - | - | - | - | - | - | - | - | - | - |
| SD 65-315/900 | 80x65 | 328 | 90 | 125 | 151 | 150 | 144.5 | 141 | 133 | 115 | 95 | 74 | - | - | - | - | - | - | - | - | - | - |
| SD 80-250/450 | 100x80 | 240 | 45 | 61 | 88 | 86.7 | 86 | 84 | 80 | 72 | 62 | 49 | - | - | - | - | - | - | - | - | - | |
| SD 80-250/550 | 100x80 | 258 | 55 | 75 | 94.5 | 94.5 | 94.5 | 92 | 89 | 82 | 76 | 66 | - | - | - | - | - | - | - | - | - | - |
| SD 80-250/750 | 100×80 | 276 | 75 | 100 | 108.5 | 108.5 | 108.5 | 106 | 103 | 96.5 | 90 | 80 | - | - | - | - | - | - | - | - | - | - |
| SD 80-315/550 | 100x80 | 270 | 55 | 75 | 98 | 97 | 95.6 | 95 | 92 | 86 | 78 | 67 | - | - | - | - | - | - | - | - | - | - |
| SD 80-315/750 | 100×80 | 295 | 75 | 100 | 124 | 123 | 121.6 | 119 | 116 | 110 | 103 | 94.5 | 89 | - | - | - | - | - | - | - | - | - |
| SD 80-315/900 | 100x80 | 320 | 90 | 125 | 144 | 143 | 141.6 | 140 | 137 | 130 | 122 | 114 | 108 | - | - | - | - | - | - | - | - | - |
| SD 80-315/1100 | 100×80 | 328 | 110 | 150 | 153 | 152 | 150.6 | 149 | 146 | 140 | 132 | 123 | 118 | - | - | - | - | - | - | - | - | - |
| SD 100-250/550 | 125x100 | 240 | 55 | 75 | 77 | 76 | 75.5 | 76 | 75 | 73 | 72 | 70 | 70 | 62.3 | 59 | - | - | - | - | - | - | - |
| SD 100-250/750 | 125x100 | 257 | 75 | 100 | 91 | 91 | 90.5 | 89.7 | 88 | 86 | 84 | 82 | 81 | 71.7 | 68.5 | 56 | - | - | - | - | - | |
| SD 100-250/900 | 125x100 | 270 | 90 | 125 | 100 | 100 | 99.5 | 98 | 97 | 95 | 93 | 91 | 90 | 80.7 | 77.5 | 65 | - | - | - | - | - | - |
| SD 100-315/1100 | 125x100 | 300 | 110 | 150 | 118 | - | - | 116 | 115.5 | 114 | 112 | 111 | 110 | 104 | 102 | 95 | - | - | - | - | - | - |
| SD 100-315/1320 | 125x100 | 315 | 125 | 170 | 129 | - | - | 127 | 126 | 124 | 123 | 122 | 121 | 115 | 112 | 105 | - | - | - | - | - | |
| SD 100-315/1600 | 125x100 | 328 | 165 | 225 | 148 | - | - | 146 | 145 | 144 | 142 | 141 | 140 | 134 | 132 | 125 | - | - | - | - | - | - |
| SD 125-250/750 | 150x125 | 255 | 75 | 100 | 80 | - | - | 77 | 76 | 74.5 | 73 | 72 | 71 | 67 | 65 | 60 | - | - | - | - | - | - |
| SD 125-250/900 | 150x125 | 265 | 90 | 125 | 87 | - | - | 84 | 83 | 81.5 | 80 | 78.5 | 78 | 73.5 | 71.5 | 67.5 | 60 | - | - | - | - | - |
| SD 125-250/1100 | 150x125 | 274 | 110 | 150 | 97 | - | - | 94 | 93 | 92 | 90.5 | 89 | 88 | 84 | 83.5 | 78.5 | 71 | - | - | - | - | - |
| SD 125-250J/1100 | 150x125 | 240 | 110 | 150 | 74 | - | - | 74.5 | 74 | 74 | 73 | 73 | 72.5 | 70.8 | 70.4 | 69 | 66 | 62.5 | 53 | - | - | - |
| SD 125-250H/1320 | 150x125 | 260 | 125 | 170 | 84 | - | - | 84 | 84 | 83.5 | 83 | 82.5 | 82 | 80.8 | 80.4 | 78.5 | 76 | 72 | 63 | - | - | |
| SD 125-250J/1600 | 150x125 | 280 | 165 | 225 | 98 | - | - | 97.5 | 97.5 | 97.5 | 97 | 97 | 96.5 | 94.8 | 94.4 | 93 | 90 | 87 | 78 | 66 | - | - |
| SD 125-315/1320 | 150x125 | 280 | 125 | 170 | 96 | - | - | - | - | - | 96 | 96 | 94 | 93.5 | 92 | 88.5 | 84 | 65 | - | - | - | |
| SD 125-315/1600 | 150x125 | 295 | 165 | 225 | 106 | - | - | - | - | - | - | 105.5 | 105 | 104 | 103.5 | 102 | 100 | 96 | 82 | - | - | - |
| SD 125-315/1850 | 150x125 | 310 | 200 | 270 | 122 | - | - | - | - | - | - | 122 | 121.7 | 120 | 119.5 | 118.5 | 116 | 110 | 95 | - | - | - |
| SD 125-315/2000 | 150x125 | 328 | 200 | 270 | 136 | - | - | - | - | - | - | 136 | 135.5 | 135 | 133.5 | 133 | 130 | 125 | 110 | - | - | - |
| SD 150-250/1320 | 200x150 | 265 | 125 | 170 | 80.2 | - | - | - | - | - | - | - | - | - | 78 | 75 | 73.5 | 71 | 67 | 61 | 54 | 37 |
| SD 150-250/1600 | 200x150 | 280 | 165 | 225 | 90 | - | - | - | - | - | - | - | - | - | 88 | 87 | 85 | 84 | 79 | 74 | 66 | 47 |
| SD 150-250/2000 | 200x150 | 295 | 200 | 270 | 100 | - | - | - | - | - | - | - | - | - | 97 | 96 | 95 | 93 | 89 | 84 | 76 | 56 |
| SD 150-315/1850 | 200x150 | 287 | 200 | 270 | 92 | - | - | - | - | - | - | - | - | - | 90 | 89 | 87.2 | 85 | 80 | 71 | 61 | - |
| SD 150-315/2500 | 200x150 | 305 | 250 | 340 | 111 | - | - | - | - | - | - | - | - | - | 110 | 108 | 106 | 104 | 98 | 90 | 82 | 62 |
| SD 150-315/2800 | 200x150 | 315 | 300 | 410 | 124 | - | - | - | - | - | - | - | - | - | 121 | 120 | 118 | 116 | 111 | 104 | 95 | 73 |
| SD 150-315/3150 | 200x150 | 327 | 300 | 410 | 135 | - | - | - | - | - | - | - | - | - | 134 | 133 | 132 | 130 | 124 | 116 | 107 | 84 |
